- More transimission for HITACHI machines
9199560 TRANSMISSION (SWING)
EX1800, EX1800-3, EX1900-6
9217606 TRANSMISSION (SWING)
EX1800-3, EX1900-5, EX1900-6
9147952 TRANSMISSION (PUMP)
EX1800-3
9108558 TRANSMISSION (PUMP)
EX1800
9177392 TRANSMISSION (PUMP)
EX1800-3
9075939 TRANSMISSION (PUMP)
EX1800
9122262 TRANSMISSION (PUMP)
EX1800
9274832 TRANSMISSION
EX1200-5D
9199690 TRANSMISSION
EX1200-5
163B2-50001 TRANSMISSION
ZW120, ZW120-G
9212180 TRANSMISSION
EX1200-5C, EX1200-5D, ZX1800K-3
(9246077) TRANSMISSION
EX8000, EX8000-6
4457375 TRANSMISSION (1/10)
ZX130W, ZX130W-AMS, ZX160W, ZX160W-AMS
9217606 TRANSMISSION (SWING)
EX1800-3, EX1900-5, EX1900-6
4642201 TRANSMISSION
SCX2800-2
9227057 TRANSMISSION
218HSL, SCX1200-2, SCX1500-2, SCX900-2
KC3742021590 TRANSMISSION
ZW550
AT222002 TRANSMISSION
LX100-5
3056952 TRANSMISSION
LX150

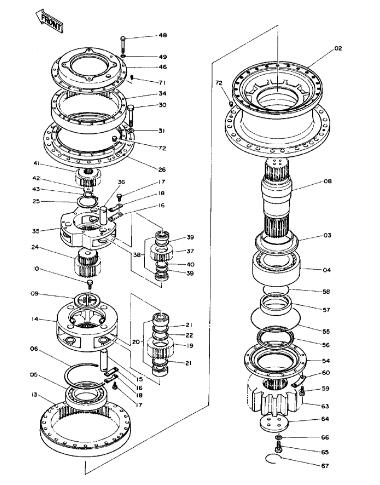

Pos.Part NoQtyParts nameComments
9063877 [2] TRANSMISSION I 9199560 (SWING)
9199560 [2] TRANSMISSION (SWING)
02. 0000462 [1] HOUSING
03. 8033439 [1] DEFLECTOR
04. 4180344 [1] BRG.;SPH.ROL.
05. 4180343 [1] BRG.;ROL.
06. 4176281 [1] RING;RETAINING
08. 2021553 [1] SHAFT T 2046250
3091661
08. 2046250 [1] SHAFT
09. 3033083 [1] WASHR;THRUST
10. J932050 [4] BOLT
13. 2021550 [1] GEAR;RING
14. 1009323 [1] CARRIER I 1018533
14. 1018533 [1] CARRIER
15. 4177236 [4] PIN
16. 4177240 [7] PLATE;LOCK
17. J931635 [14] BOLT
18. 4177241 [7] WASHER;LOCK
19. 3033085 [4] GEAR;PLANETARY
20. 4180345 [4] BRG.;SPH.ROL.
21. 4177244 [8] SPACER
22. 973069 [4] RING;RETAINING
24. 2021549 [1] GEAR;SUN T 3091636
3091635
4451688
24. 3091636 [1] GEAR;SUN
25. 4120522 [1] RING;RETAINING
26. 1009326 [1] CASE
30. J912411 [24] BOLT
31. 4085614 [24] WASHER
34. 2021551 [1] GEAR;RING
35. 1009324 [1] CARRIER
36. 4177237 [3] PIN
37. 3033084 [3] GEAR;PLANETARY
38. 4180346 [3] BRG.;SPH.ROL.
39. 4177243 [6] SPACER
40. 959501 [3] RING;RETAINING
41. 3033086 [1] GEAR;SUN T 3091636
3091635
4451688
41. 3091635 [1] GEAR;SUN
42. 4177245 [1] PLATE T 3091636
3091635
4451688
42. 4451688 [1] PLATE;THRUST
43. 4116289 [1] RING;RETAINING
46. 1009325 [1] COVER
48. J901605 [18] BOLT
49. 4114405 [18] WASHER
54. 2021554 [1] COVER
55. 4158010 [1] O-RING
56. 4083842 [1] SEAL;OIL
57. 4177246 [1] RETAINER
58. A810200 [1] O-RING
59. J911855 [12] BOLT
60. 4177842 [6] WASHER;LOCK
63. 2021552 [1] GEAR I 3091661
63. 3091661 [1] GEAR
64. 4083828 [1] PLATE
65. 4177238 [4] BOLT
66. 4085857 [4] WASHER
67. 4514053 [2] WIRE
71. 428028 [2] CORK
72. 456336 [4] CORK
The Swing drive reducer gearbox rotates the top of the Excavator on the chassis together with the slewing gear bearing.
Attributes: Heavy Duty Swing Drives are designed to be rebuilt and reused. The below following gear components are included in swing drive: sun gear, planetary gear, needle bearing, roller bearing, carrier, pinion shaft, pinion gear, oil seal, ring gear, swing housing case.
1. The gear parts are built to fit to the genuine drive gearbox system.
2. The gear parts are supplied strictly according to the genuine parts catalog.
3. All the gear components are manufactured from carefully selected materials with standard quality using standard production process heat treatment processes — including case carburizing, nitriding, and induction hardening.
4. Surplus stock and the various varioties of gear parts that cover final and swign drive for upto 70 Tons excavator. HITACHI KOMATSU HYUNDAI Vo-lvo DOOSAN KOBELCO SUMITOMO KATO JCB
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below cases
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
