• 260-2180 2602180 Pressure Sensor Excavator Electric Parts For C13 330D 336D 345D

• SpecificatA

Application	Excavator
Category	Pilot Lines
Name	Pressure Sensor
Parts No	260-2180 2602180
Machine Model	311D LRR 312D 312D L 312D2 312D2 GC 312D2 L 313D 313D2 314D
Lead time	1-3 DAYS
Quality	Brand new, OEM quality
MOQ	1 PCS
Means of transport	By sea/air, DHL FEDEX UPS TNT EMS
Packing	As request or standard packing

• Compatible models

EXCAVATOR 311D LRR 312D 312D L 312D2 312D2 GC 312D2 L 313D 313D2 313D2 LGP 314D CR 314D LCR 315D L 318D L 318D2 L 319D 319D L 319D LN 330D 330D FM 330D L 330D LN 330D MH 336D 336D L 336D LN 336D2 336D2 L 340D L 340D2 L 345D 345D L 345D L VG 349D 349D L 374D L 390D 390D L
MOBILE HYD POWER UNIT 330D 330D L 336D L 349D L
WHEELED EXCAVATOR M330D C.ate.rpillar.

• More other sensor parts fit for C A T machine

2660136 SENSOR GP-PRESSURE

311D LRR, 312D, 312D L, 313D, 314D CR, 314D LCR, 315D L, 318D L, 319D, 319D L, 319D LN, 320D, 320D FM, 320D FM RR, 320D GC, 320D L, 320D LN, 320D LRR, 320D RR, 321D LCR, 323D L, 323D LN, 323D SA, C175...

2746718 SENSOR GP-PRESSURE

14M, 16M, 24M, 345C, 345C L, 345C MH, 345D, 345D L, 345D L VG, 349D, 349D L, 365C, 365C L, 365C L MH, 374D L, 385C, 385C FS, 385C L, 385C L MH, 390D, 390D L, 583T, 587T, 621B, 621G, 623G, 627F, 627G, ...

2482169 SENSOR GP-PRESSURE

120K, 120K 2, 12K, 12M, 140K, 140K 2, 140M, 140M 2, 160K, 160M, 160M 2, 2290, 2390, 2391, 2491, 2590, 324D, 324D FM, 324D FM LL, 324D L, 324D LN, 325D, 325D FM, 325D FM LL, 325D L, 325D MH, 326D L, 32...

2968060 SENSOR GP-PRESSURE

120K, 120K 2, 12K, 12M, 140K, 140K 2, 140M, 140M 2, 160K, 160M, 160M 2, 2290, 2390, 2391, 2491, 2590, 324D, 324D FM, 324D FM LL, 324D L, 324D LN, 325D, 325D FM, 325D FM LL, 325D L, 325D MH, 326D L, 32...

3244131 SENSOR GP-SPEED

311C, 311D LRR, 312C, 312C L, 312D, 312D L, 313D, 314C, 314D CR, 314D LCR, 315D L, 318C, 318D L, 319C, 319D, 319D L, 319D LN, 320C, 320C FM, 320C L, 320D, 320D FM, 320D FM RR, 320D GC, 320D L, 320D LN...

1636700 SENSOR GP-FUEL LEVEL

1090, 1190, 1190T, 1290T, 1390, 2290, 2390, 2391, 2491, 312C, 312C L, 312D, 315C, 315D L, 318C, 319C, 319D, 319D LN, 320C, 320C FM, 320C L, 320D, 320D FM, 320D L, 320D LN, 321C, 321D LCR, 322C, 322C F...

2218859 SENSOR AS-PRESSURE

311C, 311D LRR, 312C, 312C L, 312D, 312D L, 312D2, 312D2 GC, 313D2, 314C, 314D CR, 314D LCR, 315C, 315D L, 318C, 319C, 319D, 319D L, 319D LN, 320C, 320C FM, 320C L, 320D, 320D FM, 320D FM RR, 320D GC,...

2905825 SENSOR GP-PRESSURE

924G, 924GZ, 924H, 924HZ, 928H, 928HZ, 930G, AP-600D, AP-655D, AP1000E, AP1055E, AP555E, BG1000E, BG1055E, BG500E, CW-34, IT28G, M313C, M313D, M315C, M315D, M315D 2, M316C, M316D, M317D 2, M318C, M318...

2380118 SENSOR GP-PRESSURE

311D LRR, 312D, 312D L, 313D, 314D CR, 314D LCR, 315D L, 318D L, 319D, 319D L, 319D LN, 320D, 320D FM, 320D FM RR, 320D GC, 320D L, 320D LN, 320D LRR,

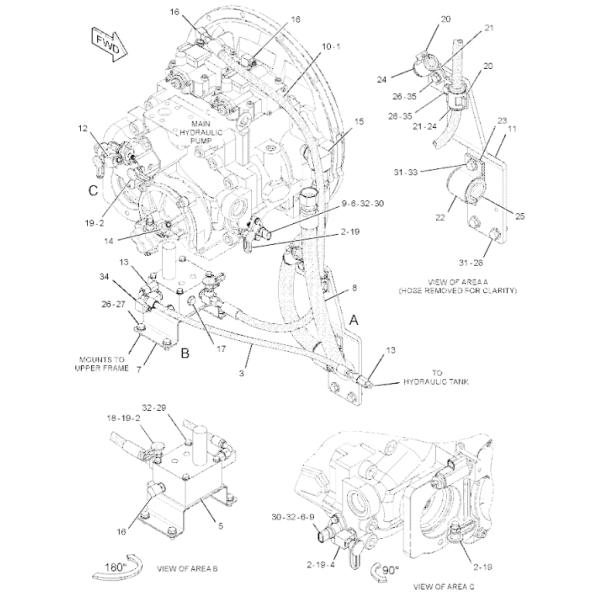

• catalog parts list

Pos.	Part No	Qty	Parts name	Comments
1	4I-9527	[2]	BAND-MARKER (GREEN, R3)
2	6V-0852	[5]	CAP-DUST
3	7Y-8379 I	[1]	HOSE AS
4	164-6874	[1]	FITTING AS-ELBOW (QUICK DISCONNECT, MALE)
	3J-1907	[1]	SEAL-O-RING
	085-7356	[1]	FITTING
5	171-0188 Y	[1]	VALVE GP-SOLENOID (NEG FLOW CONT, PROPN RED VALVE)
6	221-8912	[2]	FLANGE
7	239-1756	[1]	SUPPORT AS
	8T-3612 M	[4]	NUT-WELD (M8X1.25-THD)
8	245-5096 I	[1]	HOSE AS
9	260-2180	[2]	SENSOR AS-PRESSURE (PUMP OUTPUT)
			(EACH INCLUDES)
	095-1777	[1]	RING-BACKUP
	260-2191	[1]	SEAL-O-RING
10	272-4138 I	[1]	HOSE AS
11	302-2986	[1]	SUPPORT AS
12	322-8727	[1]	ELBOW AS
	3J-1907	[1]	SEAL-O-RING
	6V-8398	[1]	SEAL-O-RING
	322-8728	[1]	ELBOW (WITH SCREEN)
13	148-8338	[2]	CONNECTOR AS
			(EACH INCLUDES)
	3J-1907	[1]	SEAL-O-RING
	6V-8397	[1]	SEAL-O-RING
	8T-0075	[1]	CONNECTOR
14	148-8345	[1]	CONNECTOR AS
	2M-9780	[1]	SEAL-O-RING
	6V-8398	[1]	SEAL-O-RING
	6V-8638	[1]	CONNECTOR
15	148-8362	[1]	ELBOW AS
	3D-2824	[1]	SEAL-O-RING
	5K-9090	[1]	SEAL-O-RING
	8T-6684	[1]	ELBOW
16	148-8378	[3]	ELBOW AS
			(EACH INCLUDES)
	3J-1907	[1]	SEAL-O-RING
	6V-8397	[1]	SEAL-O-RING
	6V-8724	[1]	ELBOW
17	148-8407	[2]	PLUG AS
			(EACH INCLUDES)
	3J-1907	[1]	SEAL-O-RING
	9S-4191	[1]	PLUG (9/16-18-THD)
18	150-4027	[1]	TEE AS
	3E-2310	[1]	TEE
	3J-1907	[1]	SEAL-O-RING
	6V-8397	[1]	SEAL-O-RING
19	164-5567	[5]	COUPLER AS-QUICK DISCONNECT (MALE)
			(EACH INCLUDES)
	214-7568	[1]	SEAL-O-RING
	6V-3965	[1]	FITTING (QUICK DISCONNECT)
20	5P-7462	[2]	CLIP (SLOT)
21	5P-7463	[2]	CLIP (TAB)
22	5P-7468	[1]	CLIP (SLOT)
23	5P-7469	[1]	CLIP (TAB)
24	6V-0683	[2]	GROMMET
25	8T-2525	[1]	GROMMET
26	8T-4121	[6]	WASHER-HARD (11X21X2.5-MM THK)
27	8T-4137 M	[4]	BOLT (M10X1.5X20-MM)
28	8T-4139 M	[2]	BOLT (M12X1.75X30-MM)
29	8T-4177 M	[4]	BOLT (M8X1.25X90-MM)
30	8T-4189 M	[4]	BOLT (M8X1.25X20-MM)
31	8T-4223	[3]	WASHER-HARD (13.5X25.5X3-MM THK)
32	8T-4224	[8]	WASHER-HARD (8.8X16X2-MM THK)
33	8T-4192 M	[1]	BOLT (M12X1.75X25-MM)
34	363-6134	[1]	ADAPTER AS
	3J-1907	[1]	SEAL-O-RING
	6V-8397	[1]	SEAL-O-RING
	354-3864	[1]	ADAPTER-FILTER
35	8T-4136 M	[2]	BOLT (M10X1.5X25-MM)
	I		REFER TO HYDRAULIC INFORMATION SYSTEM
	M		METRIC PART
	Y		SEPARATE ILLUSTRATION
