- 11LB-20310 Fuel Filter HYUNDAI Excavator Spare Parts Fit For R140LC-9S R160LC-7 R180LC-7
| Name | Fuel Filter |
| Parts No | 11LB-20310 |
| Machine Model | R110-7 R140LC-7 R160LC7 R180LC7 R210LC7 |
| egory | Fuel System |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
Its main function is to filter the fuel. When the fuel enters the filter from the inlet, it passes through the filter element, and impurities and water in the fuel are intercepted by the filter element, while the clean fuel flows out from the outlet and is sent to the engine, which can effectively prevent impurities from entering the engine and causing wear and tear on engine parts, and also avoid the impact of water in the fuel on the combustion process, thus ensuring the normal operation and performance of the engine.
7 SERIES WHEEL EXCAVATOR R140W7 R170W7 R200W7
7-SERIES CRAWLER EXCAVATOR R110-7 R140LC-7 R160LC7 R180LC7 R210LC7 R210LC7H R210NLC7 R215LC7 R250LC7 R290LC7 R290LC7A R300LC7 R305LC7 R320LC7 R320LC7A R360LC7 R360LC7A R370LC7 R450LC7 R450LC7A R500LC7 R500LC7A R8007AFS R800LC7A RC215C7 RC215C7H RD210-7 RD220-7 RD340LC-7 RD510LC-7
7-SERIES FORK LIFT-DIESEL 100D-7 35D-7 35DE 35DS-7 35DS-7E 50DE 50DEACE 50DF 50DS-7E 80D-7 80DE 80DEACE HDF50-7 HDF50-7S
7-SERIES WHEEL LOADER HL760-7 HL770-7
9-SERIES CRAWLER EXCAVATOR R140LC9 R140LC9S R160LC9S R180LC9S R210LC9 R210LC9BC R210LC9BH R250LC9 R260LC9S R290LC9 R300LC9S R300LC9SH R320LC9 R330LC9S R330LC9SH R360LC9 R380LC9SH R390LC9 R430LC9SH R480C9MH R480LC9 R480LC9S R520LC9 R520LC9S R800LC-9 R800LC9FS RB140LC9S RB160LC9S RB220LC9S RD220LC9
9-SERIES FORK LIFT-DIESEL 35D-9S
9-SERIES WHEEL EXCAVATOR R140W9 R140W9S R170W9S R180W9S R210W9S
9-SERIES WHEEL LOADER HL780-9S Hyundai
- More other fuel filter parts fit for HYUNDAI machine
| 11Q8-20320 ELEMENT-PRIMARY |
| 180D-9, 180DE, 250DE, HL740-9, HL740TM-9, HL757-9, HL757-9S, HL757-9SB, HL757TM-9, HL760-9, HL760-9S, HL760-9SB, R290LC9, R290LC9MH, R320LC9 |
| |
| 11Q8-20310 ELEMENT-SAFETY |
| 180D-9, 180DE, 250DE, HL740-9, HL740TM-9, HL757-9, HL757-9S, HL757-9SB, HL757TM-9, HL760-9, HL760-9S, HL760-9SB, R290LC9, R290LC9MH, R320LC9 |
| |
| 31EE-02110 ELEMENT |
| 15D, 15D-9, 15D-9S, 15G-7M, 15L-7M, 15LC-7M, 20D-7E, 20DF, 20DT, 22D-9, 22D-9E, 22D-9T, 25G-7M, 25GC-7A, 25GC-7M, 25GC-7S, 25L-7A, 25L-7M, 25LC-7A, 25LC-7M, 25LC-7S, 25LF, 35D-9, 35D-9K, 35D-9S, 50D-9... |
| |
| 11N6-27030 ELEMENT-SAFETY |
| HL730-9, HL730-9S, HL730-9SB, HL730TM-9, HL740-9B, HL740-9S, HL740-9SB, HL757-9SM, HW140, HW210, HX220NL, HX235L, R140LC9, R140LC9S, R140W9, R140W9S, R160LC9, R160LC9S, R170W9, R170W9S, R180LC9, R180L... |
| |
| 11N6-27040 ELEMENT-PRIMARY |
| HL730-9, HL730-9S, HL730-9SB, HL730TM-9, HL740-9B, HL740-9S, HL740-9SB, HL757-9SM, HW140, HW210, HX220NL, HX235L, R140LC9, R140LC9S, R140W9, R140W9S, R160LC9, R160LC9S, R170W9, R170W9S, R180LC9, R180L... |
| |
| 11N8-22150 ELEMENT-INNER |
| HL740-7A, HL740TM-7A, HL757-7A, HL757TM7A, R290LC7H, R300LC7, R305LC7, R320LC7, R320LC7A, R360LC7, R370LC7 |
| |
| E131-0212 ELEMENT-RETURN FILTER |
| 33HDLL, R110-7, R140LC-7, R140LC9V, R140W7, R160LC7, R170W7, R180LC7, R200LC, R200W2, R200W3, R200W7, R210ECONO, R210LC3, R210LC3H, R210LC3LL, R210LC7, R210LC7H, R210NLC7, R215LC7, R250LC3, R250LC7, R... |
| |
| 3934429 ELEMENT-LUB OIL FILTER |
| R140LC-7, R140W7 |
| |
| 11N7-10020 ELEMENT |
| HW140, HW210, HX180L, HX220L, HX220NL, HX235L, HX260L, R125LCR-9A, R140LC9A, R140W9, R140W9A, R145CR9A, R160LC9A, R160W9A, R170W9, R180LC9A, R180W9A, R200W7, R200W7A, R210LC7, R210LC7A, R210LC9, R210L... |
| |
| 31Q6-01280 ELEMENT-RETURN |
| R210LC9, R210LC9BC, R210LC9BH, R220LC9A, R235LCR9, R235LCR9A, RB220LC9S, RD220LC9 |
| |
| 31E9-1019 ELEMENT-RETURN |
| 42HDLL, R170W3, R180LC3, R200NLC3, R290LC, R290LC3, R290LC3H, R290LC3LL, R290LC7, R290LC7A, R290LC7H, R305LC7, R320LC, R320LC3, R320LC7, R320LC7A |

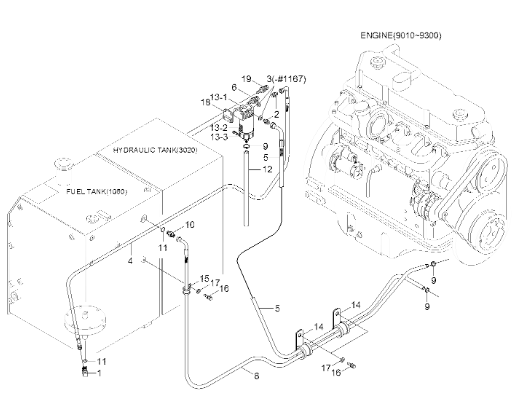

| Pos. | Part No | Qty | Parts name | Comments |
| 1 | P020-110003 | [1] | ELBOW-90 | |
| 2 | 11N6-50010 | [2] | CONNECTOR | |
| 2 | 11NA-50040 | [2] | CONNECTOR | |
| 2 | 11QB-50040 | [2] | CONNECTOR | |
| 3 | P392-140000 | [2] | WASHER-COPPER | |
| 3 | P392-160000 | [2] | WASHER-COPPER | |
| 4 | 11N4-50010 | [1] | HOSE-FUEL | |
| 5 | 11N5-50020 | [1] | HOSE ASSY-FUEL | |
| 6 | S015-080202 | [2] | BOLT-HEX | |
| 6 | S035-083022 | [2] | BOLT-W/WASHER | |
| 7 | S403-082002 | [2] | WASHER-PLAIN | |
| 8 | 11N5-50030 | [1] | HOSE-FUEL | |
| 9 | S520-015000 | [2] | CLAMP-HOSE | |
| 10 | P020-110014 | [1] | ELBOW-90 | |
| 11 | S631-018001 | [2] | O-RING | |
| 12 | 11N8-50111 | [1] | HOSE ASSY | |
| 12 | 11N8-50112 | [1] | HOSE ASSY | |
| 12 | 11N1-50020 | [1] | HOSE ASSY | |
| 12 | 11M8-50030 | [1] | HOSE ASSY | |
| 13 | 11EM-52320 | [1] | WATER SEPARATOR | |
| 13 | 11LB-20300 | [1] | PRE FILTER ASSY | |
| 13 | 11NB-70400 | [1] | PREFILTER ASSY | |
| 13-1. | 11LD-20240 | [1] | HEAD-FILTER | |
| 13-2. | 11LB-20310 | [1] | ELEMENT ASSY-F/FILTER | |
| 13-3. | 11LD-20260 | [1] | BOWL ASSY-W/KNOB | |
| 13-3. | 11NB-70410 | [1] | BOWL ASSY-W/HEATER | |
| 13-3-1. | 11NB-70420 | [1] | GASKET-DRAIN KNOB | NOT SHOWN |
| 14 | S543-320002 | [2] | CLAMP-TUBE | |
| 15 | S543-200002 | [1] | CLAMP-TUBE | |
| 16 | S017-100162 | [3] | BOLT-HEX | |
| 17 | S403-101002 | [3] | WASHER-PLAIN | |
| 18 | 11N8-53040 | [1] | BRACKET | |
| 19 | S035-082022 | [2] | BOLT-W/WASHER | |
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
